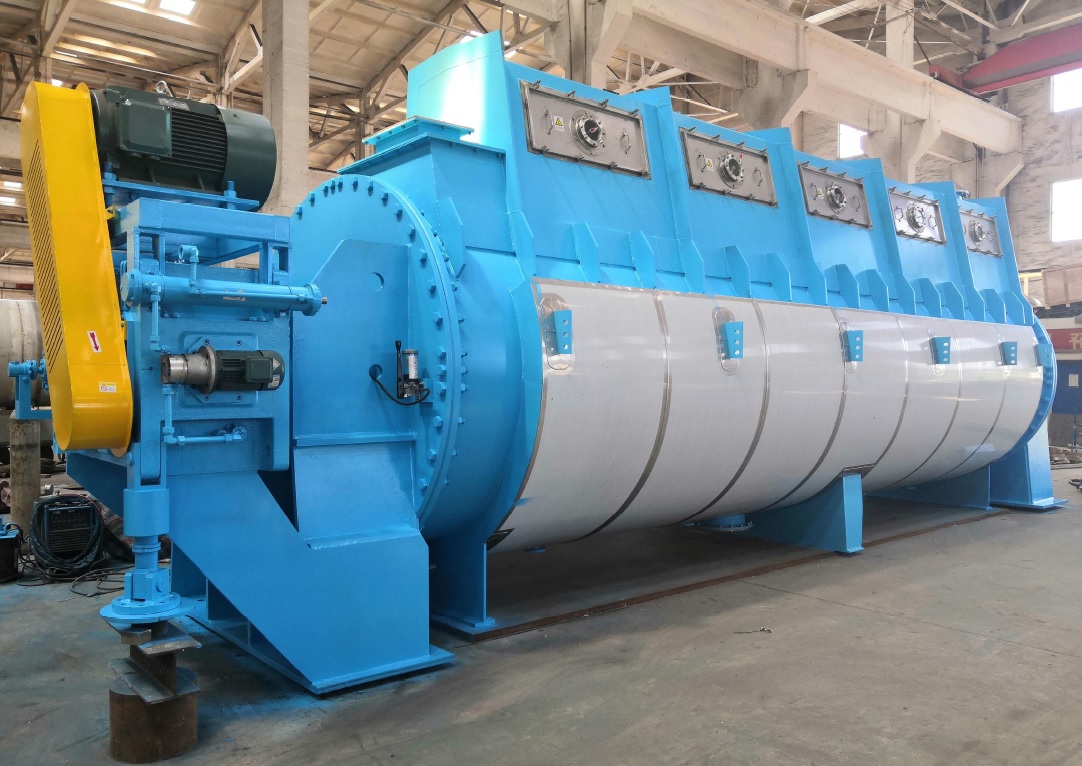

Continuous rotary indirect disc dryers

An Industrial disc dryer is a horizontal, indirect steam-heated machine for reducing the moisture of different raw materials. Efficient drying is provided by the flow of saturated steam, and it is based on the heat exchange between the product and hot dryer discs. Double-walled discs are welded to the rotor of the dryer. Indirect heat transfer allows a gentle and environmentally friendly drying process. The design of the rotor discs ensures the appropriate flow of the saturated steam and high water vapor evaporation. The processed material is continuously fed to the inlet and transported and mixed by the paddles placed at the circumference of the discs. Specially designed scrapers mounted to the stator are preventing material from sticking to the discs.



Types of the dryers and applications

The dryer is designed for continuous drying by-products of animal origin, such as, such as cattle, meat, poultry, feathers, fish, and blood. TG-Machines is offering high-quality, reliable disc dryers for meat rendering, and for fish meal processing. Furthermore, industrial machines like hollow blade paddle dryers, continuous tube coil dryers, sewage sludge disc dryers, and rotary disc dryers are available. TG-Machines is providing industrial dryers for all types of slaughterhouse offal. Best evaporate efficiency can be achieved with materials that have a low-fat content.

Thermal dryers can be applied to homogeneous partial drying of dewatered sewage sludge plants. Some water cannot be separated mechanically, therefore drying is necessary. Standard discs are made to handle sticky materials. The drive unit and main shafts are heavy-duty elements to deal with sticky sewage sludge. Waste vapor is discharged through a vapor outlet to the exhaust gases treatment plant. Condensation takes place in the condenser.



Custom-made solutions

The dryer is designed with energy-efficient equipment like a motor, gearbox, and discharge screw drive unit. The steam distribution system is designed to obtain optimally the best possible heat transfer efficiency. TG-Machines can deliver machines with a wide range of performances. Maintenance and operation of the dryer are easy. If you are a demanding customer, please contact us, and we will help you to choose the best possible drying system for your application.
